A Smarter Approach to CMM Troubleshooting

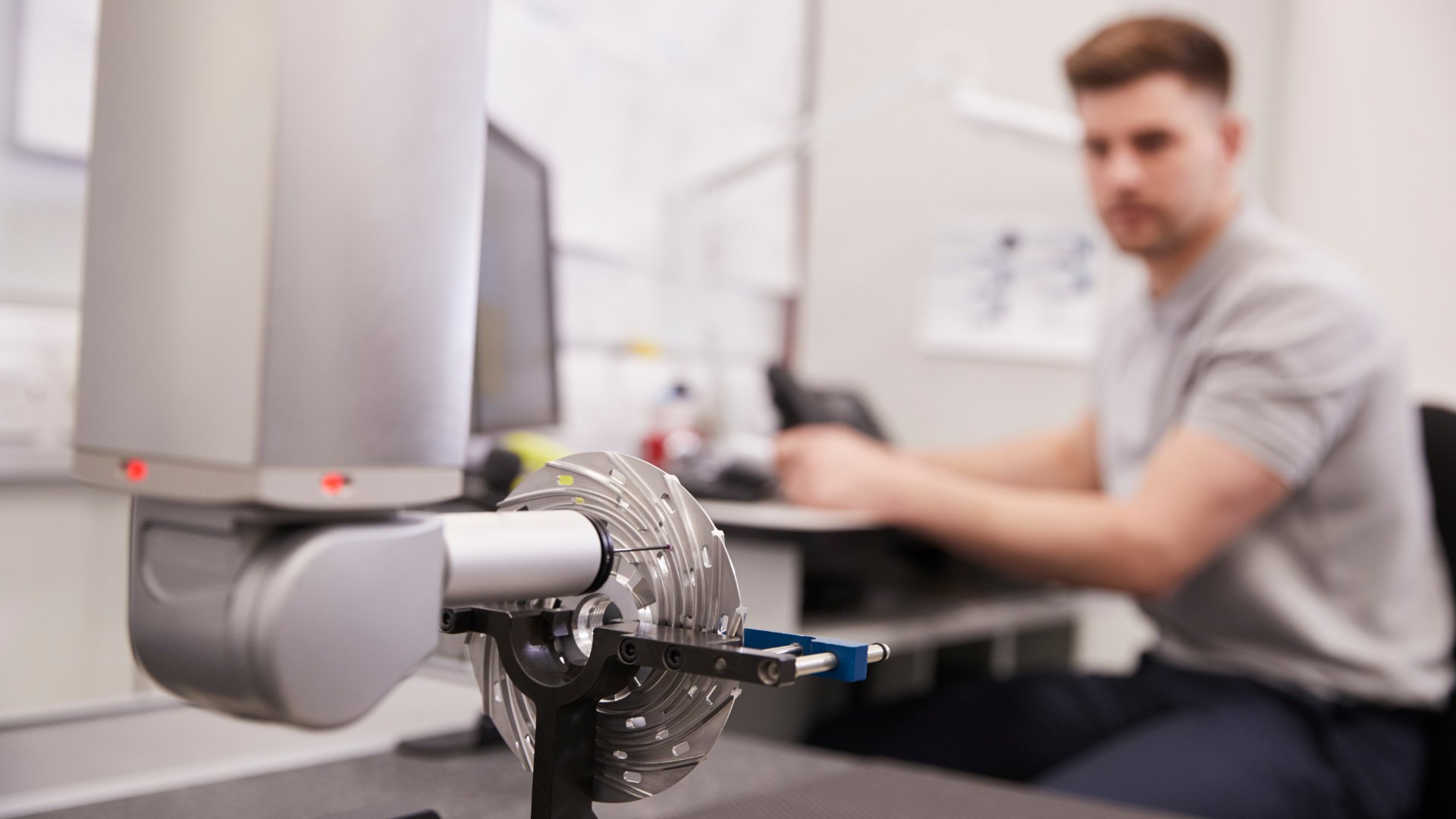

Coordinate measuring machines are built for precision, yet precision depends on more than a calibrated machine. A result that drifts out of tolerance might point to the probe, the part setup, the room, or the inspection program. The challenge is knowing where to look first without disturbing the evidence. A smarter approach to CMM troubleshooting starts with the clues already in front of the team and turns them into a controlled path toward the real cause without adding fresh confusion.
The Hidden Cost of Traditional Troubleshooting
The hidden cost of traditional troubleshooting is that it turns CMM issues into repeat visitors instead of resolved problems. When the default response is to fix the issue only after a failure, the same errors tend to recur under slightly different conditions.
Unstructured diagnostics create another problem: inconsistency between operators. One person reruns the program, and someone else calls for service before the original symptom is verified. As a result, inspection time disappears, and confidence in the measurement process weakens.
The ripple effect reaches production quickly. Delayed approvals and questionable results trace back to the same problem of troubleshooting without a clear starting point.
Start With the Data and What Your CMM Is Already Telling You
The CMM usually shows a pattern before it shows a crisis. A single feature drifting in one direction suggests a different cause than every measured point shifting together. Repeatability issues point somewhere else entirely.
Begin with the last known good run. Compare the same program and the same probe setup whenever possible. The goal is to see whether the change arrived suddenly or developed over time.
A sudden jump often points to a recent change in the measurement process, while gradual drift tends to develop over time as equipment and environmental conditions shift. Reviewing the data first narrows the likely causes before anyone begins adjusting hardware.
Environmental Factors: The Most Overlooked Source of CMM Problems
The room surrounding a CMM directly influences measurement behavior. Temperature swings affect the machine structure and the part being inspected. A workpiece moved from production into the lab needs time to stabilize before its dimensions mean much.
Airflow creates another quiet problem. A vent blowing across the table or a nearby door opening throughout the day changes local conditions. Those changes do not need to be dramatic to interfere with tight tolerances.
You canβt forget vibration being a factor, either. A compressor or heavy equipment nearby might introduce a variation that appears to be a machine fault. Before assuming the CMM is failing, note when the issue appears and what is happening around it.
Probe and Stylus Issues
The probe system sits at the point where the CMM meets the part, so small problems there travel through the entire measurement. A worn stylus tip changes contact behavior. A loose joint or a poorly seated probe module produces results that seem inconsistent for no clear reason.
Probe qualification records are worth careful review. If the qualification result has shifted, the inspection routine should not proceed as though nothing has changed. Recheck the stylus assembly and the reference sphere before returning to production measurements.
The interaction between the probe and calibration sphere becomes increasingly significant in high-precision work, and how Hertzian deformation affects calibration spheres naturally fits within the broader issue of what happens at the exact point of contact during probe qualification. Once the contact condition changes, the numbers downstream lose their authority.
Software and Program-Related Errors That Mimic Hardware Problems
Software problems sometimes look like machine problems. For example, an outdated CAD model might make the CMM appear unreliable. In reality, the machine is following instructions that no longer match the job.
Alignment deserves special care because it shapes the entire inspection routine. If the datum structure is weak or the setup feature is unstable, every later result inherits that weakness. A small mistake near the start of the program spreads across the report.
Program history prevents guesswork. Compare the active routine against the last stable version. Confirm the CAD file and the report template before proceeding with mechanical troubleshooting.
A Smarter, Step-by-Step Troubleshooting Workflow
Breaking troubleshooting into clear steps makes it easier to identify the source of an issue without introducing new variables.
Define the Problem Clearly
Start with a precise description of the symptom. Identify the feature that is out of tolerance, the amount of deviation, the inspection program being used, and when the issue first appeared.
Clear documentation prevents the team from chasing a general sense that the machine is βoffβ and creates a baseline for the investigation.
Repeat the Measurement
Run the measurement again without changing the setup.
If the result changes significantly between runs, the issue is likely related to repeatability. If the result remains consistent, focus on sources of systematic error instead.
Check the Measurement Chain
Work through the inspection process one element at a time. Begin with the part setup and fixturing, then verify probe qualification, review the inspection program, and finally evaluate environmental conditions.
Changing only one variable at a time keeps the results meaningful and isolates the true cause.
Verify With a Known Artifact
Measure a certified artifact or master part using the same machine and probe configuration.
If the artifact measures correctly, the problem likely lies with the part or inspection routine. If the artifact also produces incorrect results, the machine system requires deeper investigation.
Document Findings Before Making Corrections
Record what was tested, what changed, and what remained consistent throughout the process.
Good documentation prevents repeated troubleshooting efforts and provides valuable information if service support becomes necessary.
When To Call In a Technician
Call in a technician once basic troubleshooting no longer explains the issue. If the CMM keeps failing the same check or behaves differently after an impact, more reruns only add uncertainty. Before service begins, document when the problem appeared and what the last probe qualification showed, so the technician has a clear starting point.
CMM troubleshooting works best when the same discipline used for inspection is applied to the investigation. Every result carries clues about what went wrong during the process. A smarter approach to CMM troubleshooting turns those clues into a practical workflow that protects confidence without wasting time on blind adjustments.
