How To Improve the Accuracy of Your Gantry System

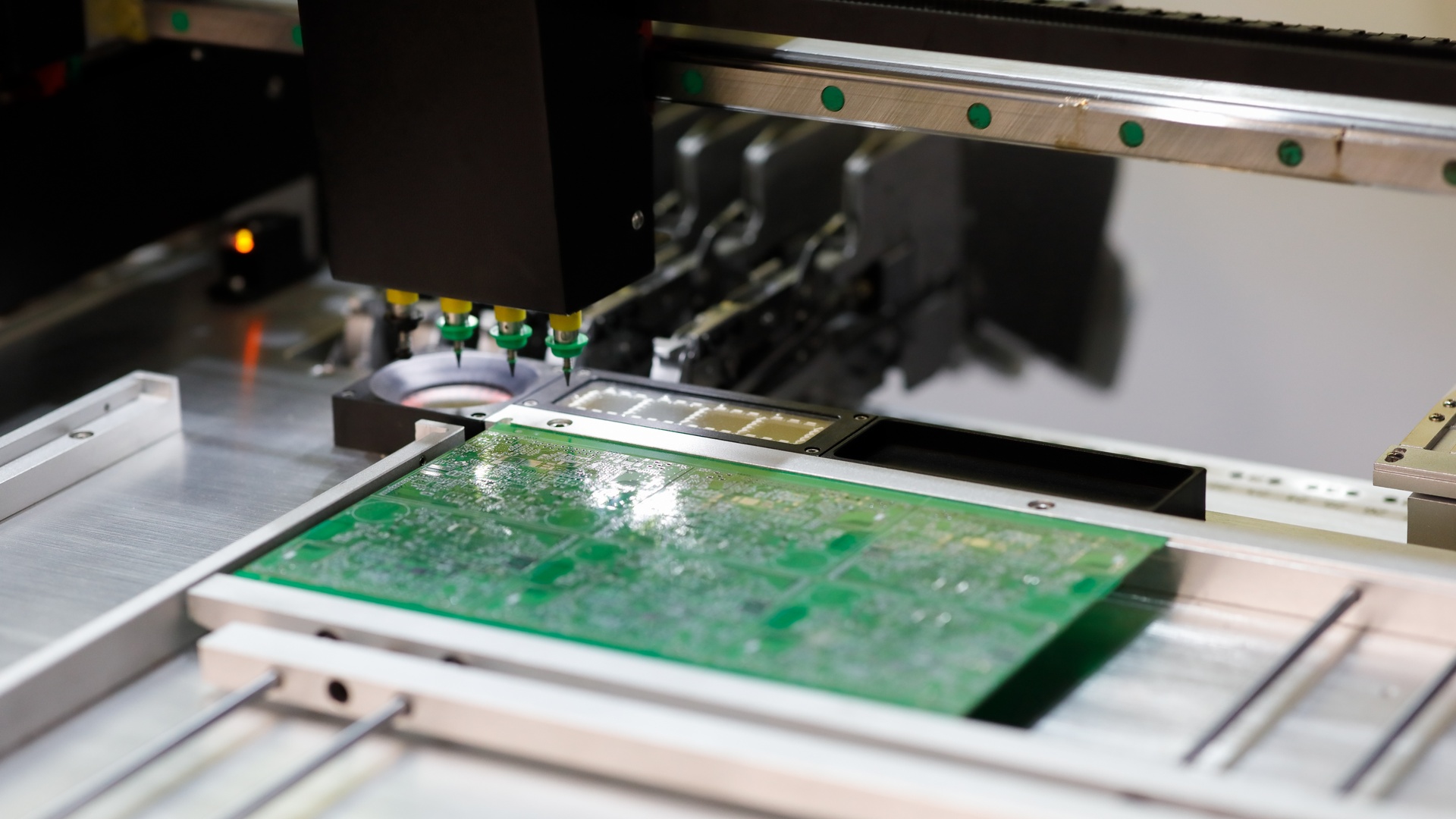

Gantry systems are essential in numerous industries due to their versatility and ability to handle demanding tasks with remarkable precision. These systems, which consist of a framework that supports and guides components for linear motion, are common in applications such as pick-and-place operations, 3D printing, CNC machining, and medical imaging.
Achieving and maintaining optimal accuracy requires more than just robust components; it also depends on factors such as proper alignment, regular maintenance, and advanced control systems. Learning how to improve the accuracy of your gantry system with these practical strategies will maximize its efficiency and ensure it meets the exacting standards of your applications.
Choose High-Quality Linear Motion Components
Selecting high-quality linear guides, motors, ball screws, and other components is fundamental to achieving precise movements. Select components designed to withstand the specific loads, speeds, and environmental conditions of your applications. Poor-quality or mismatched components can introduce errors, unnecessary wear, and inefficiencies, ultimately reducing the overall accuracy of your system. When ordering components, ensure they meet industry standards and are compatible with the rest of your system.
Ensure Proper Alignment
Slight deviations in alignment can cause uneven loads, increased friction, and unintended motion that degrade performance. During the installation and setup of your gantry system, align all components correctly. Utilize laser alignment systems for precise calibration, and check the alignment periodically, especially after heavy usage or moving the system. Realigning components when necessary minimizes errors and ensures smooth operation.
Perform Regular Maintenance
Proper maintenance ensures the gantry system remains accurate and functions optimally. Over time, wear and tear can affect linear guides, bearings, and other components, leading to inaccuracies in movement. Establish a routine maintenance schedule to check for misalignments, improper lubrication levels, and potential damage. Addressing common ball screw failure modes will extend the lifespan of your system and maintain high levels of precision.
Implement Advanced Control Systems
Consider upgrading to advanced motion controllers that support high-resolution feedback. These controllers improve positioning accuracy by correcting deviations in real-time, delivering superior performance compared to basic controllers. Investing in servo motors over stepper motors can further enhance precision. Pair these motors with high-quality encoders for even more accurate motion control.
Optimize Environmental Conditions
Extreme temperatures can cause components to expand or contract, resulting in minor positional errors. Dust and debris can clog or damage moving parts, leading to suboptimal performance. To mitigate these challenges, maintain a clean and controlled environment. Use protective covers or seals to shield delicate components from contaminants, and apply the right lubricants for the prevailing temperature conditions.
You can improve the accuracy of your gantry system with a bit of attention to detail and proactive management. By selecting high-quality components, practicing regular maintenance, and optimizing the operating environment, you can enhance the system’s precision and longevity.
